E-Drive Main Control Boards
Replacement Control Boards and Logic Upgrades for Legacy Maestro and eDrive Operators

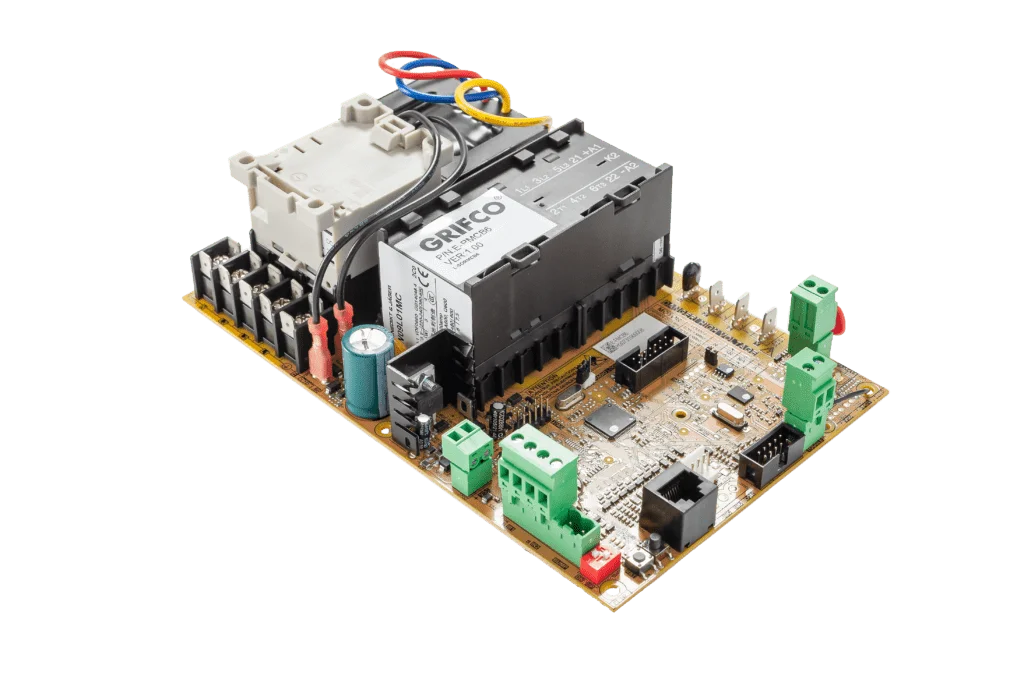

The E-Drive replacement control boards are designed to replace faulty logic boards on E-Drive myQ operators.
The E-Drive Conversion Kit is designed to upgrade legacy Grifco operators with electronic limits (Maestro and original eDrive products) to the E-Drive logic platform. It includes:
- E-Drive PCB
- E-Drive APE encoder assembly
- Shaft adaptor assembly
Replacement Main Control Boards for E-Drive Openers
| Part No. | Description | Suits Product |
|---|---|---|
| MCB6ED | Standard MCB | E-Drive |
| MCB6EDN | Standard MCB, No neutral | E-Drive |
| MCBL6051 | Standard MCB with Relays | 0.5Hp E-Drive |
| MCB6ED-SBF | MCB with Smoke Baffle Feature | E-Drive |
| MCB6EDN-SBF | MCB with SBF, No neutral | E-Drive |
| GLMe6-MCB | MCB for GLMe6 Control | GLMe6 |
| GLMe6N-MCB | MCB for GLMe6N Control | GLMe6N |
| EB1 | Expansion Board | E-Drive |
E-Drive Conversion Kit
| Part No. | Description |
|---|---|
| M123ED6 | Standard Conversion Kit |
| M123EDN6 | Standard Conversion Kit, No neutral |
MCB Alternate Mount Kits
| Part No. | Description |
|---|---|
| WMK1 | Wall Mount Kit, inc. 1.5m lead & terminal block |
| RBK2 | Rotation Bracket Kit |
Other Related MCB Spares
| Part No. | Description |
|---|---|
| APE1 | Absolute Positioning Encoder |
| MCEP1 | MCB Enclosure, inc. standard lid |
| MCBE1 | MCB Enclosure, inc. base plate & cradle |
| MCBEH1 | MCB Enc, inc. base plate & cradle (high lid) |
| MCBEW1 | MCB Enclosure for wall/ceiling mount |
| MCBEWH1 | MCB Enclosure for wall/ceiling mount (high lid) |
| MCBC1 | MCB Cradle only |
| GPI | Push in Grommets for MCB base |
